เครื่องต่อสายพาน (Conveyer Belt)
HOLO
-

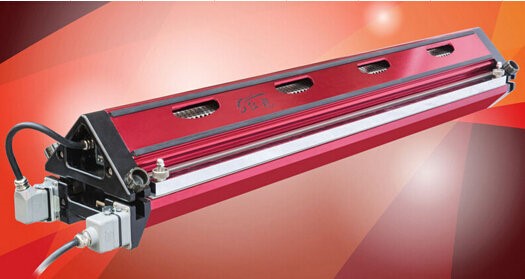

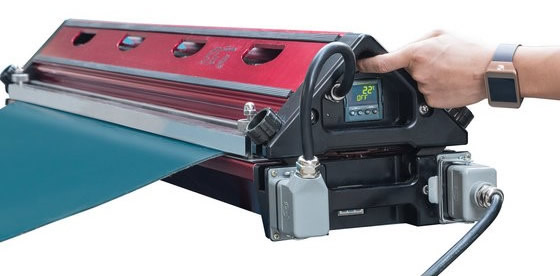

HOLO 300 – 2100 Air Cooling Splice Press Conveyor Belt Vulcanizer

QUICK JOINT ALL-IN-ONE MACHINE
THE HOLO SERIES AIR COOLING PRESS, HAVE VERIOUS MODELS FOR WIDTH FROM 300 – 2100 MM
USE FOR THERMOPLASTIC MATERIALS LIKE PVE BELT ETC.
PORTABLE SPLICE PRESS, LIGHT WEIGHT AND WITH FLIGHT CASE AS STANDARD PACKING, IS EASILY REMOVED TO ANY WHERE FOR JOB SITE USE
DAST SPLICING: INCLUDE HEATING TIME AND COOLING TIME, NO MORE THAN 12 MINS.
ALL IN ONE DESIGN: THE PRESS HAS AN INTEGRATED AIR-COOLING SYSTEM AND ALSO AIR COMPRESOR INSIDE. TO ENSURE THAT THE BELT IS QUICKLY COOLED DOWN AND AUTO PRESS ON, WITHOUT WATER PUMP OR ADDITIONAL AIR COMPRESOR.
EASY TO USE AND ASSEMBLE, HOW TO OPERATE PLEASE FREELY REFER TO HOLO’S OPERATION VIDEO
LIGHT WEIGHT
RELIABLE AND AUTOMATIC TEMPERATURE CONTROL WITH TIME CONTROL (INOUNE METER, ALSO YOU CAN SET BY YOURSELF).
AIR PRESSURE CONTROLLER (SET THE AIR PRESSURE AND DISPLAY THE CURRENT PRESSURE)
VOLTAGE: 220V OR 380V, IF SPECIAL VOLTAGE FEEL FREE TO INFORM US.
Tool Specifications |
HOLO300 |
HOLO600 |
HOLO900 |
HOLO1200 |
HOLO1500 |
HOLO1800 |
HOLO2100 |
Effective length |
305mm |
610mm |
914mm |
1219mm |
1524mm |
1829mm |
2360mm |
Effective width |
130mm |
130mm |
130mm |
130mm |
130mm |
130mm |
130mm |
Weight lower part |
10 kg |
16 kg |
20 kg |
28.5 kg |
32 kg |
34 kg |
36 kg |
Weight upper part |
11 kg |
13 kg |
18 kg |
25.5 kg |
30 kg |
42 kg |
55 kg |
Total weight |
21 kg |
30 kg |
38 kg |
54 kg |
62 kg |
76 kg |
134 kg |
Length |
505mm |
805mm |
1105mm |
1405mm |
1705mm |
2005mm |
2360mm |
Overall Height |
220mm |
225mm |
225mm |
225mm |
225mm |
225mm |
255mm |
Overall Width |
250mm |
250mm |
250mm |
250mm |
250mm |
250mm |
255mm |
Max. pressure |
2 Bar |
2 Bar |
2 Bar |
2 Bar |
2 Bar |
2 Bar |
2 Bar |
Max. temperature |
200 C |
200 C |
200 C |
200 C |
200 C |
200 C |
200 C |
Dimension for transport |
712 x 352 x 280mm |
1012 x 352 x 280mm |
1312 x 352 x 280mm |
1612 x 352 x 280mm |
1912 x 352 x 280mm |
2212 x 352 x 280mm |
2567 x 352 x 300mm |
Weight for transport |
26 kg |
35 kg |
43 kg |
84 kg |
96 kg |
226 kg |
269 kg |
Power |
1.6kw |
2.8kw |
4kw |
5.2kw |
6.4kw |
7.5kw |
8.8kw |
Back to main menu...
-

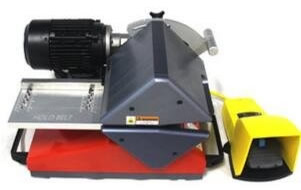

Ply Separator HOLO Conveyor Belt Splitting Machine
Description
1) This equipment is used for belts splitting, cut thick belt into thin belt.
2) Belts can be divided into two layers, three layers, or four layers, etc.
3) Layered thickness accuracy can reach 1mm.
Layering blade：Hard alloy steel knife
Controller： Positive inversion control box
Switch： Pedal switch， Foot pedal
Voltage： 220V
Splitting thickness：1-5mm, PU, PVC, Rubber belt etc. Conveyor belts
Ply 130 Tool specifications |
Specifications |
PLY130 |
|
Minimum |
Maximum |
Splitting Depth |
400mm(1.5”) |
130mm(5.1”) |
Belt thickness above cut |
0.35mm(0.014”) |
8mm(0.3”) |
Belt thickness below cut |
0.35mm(0.014”) |
5mm(0.2”) |
Maximum belt thickness |
N/A |
10mm(0.4”) |
Tool dimensions |
550*420*420mm(22″*17″*17″) |
Tool Weigh |
121lbs(55kg) |
Back to main menu...
Model |
TC300 |
TC600 |
TC900 |
TC1200 |
TC1500 |
Machine length |
530mm |
890mm |
1120mm |
1340mm |
1550mm |
Machine width |
390mm |
390mm |
390mm |
390mm |
390mm |
Machine Height |
380mm |
380mm |
380mm |
380mm |
380mm |
Weight |
19kgs |
27kgs |
36kgs |
41kgs |
47kgs |
Packing weight |
35kgs |
50kgs |
65kgs |
74kgs |
80kgs |
Packing Dimension |
580x500x480mm |
1010x500x480mm |
1330x500x480mm |
1400x510x480mm |
1580x510x480mm |
Back to main menu...
-

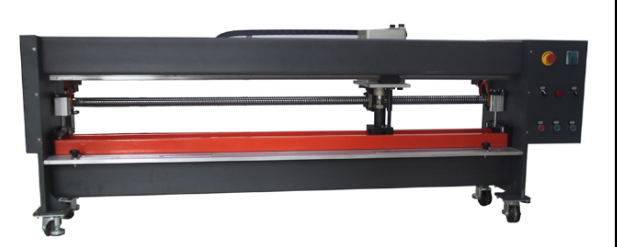

HOLO TC Automatic Finger Puncher
HOLO TC automatic finger punching machine is a high efficiency machine for punching fingers on workshop before the splicing press work.
- This machine can finish the whole punching work by simply press the button,
whole punching work fully automatic.
Product Description

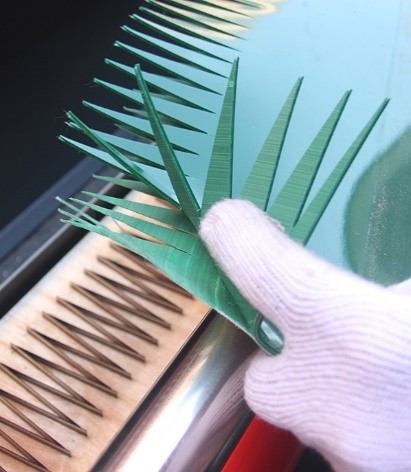

- With standard two changeable finger size 10*80 and 20*80, angle cut die can custom-made
Die on the top operated by hydraulic cylinder.
- Maximum thickness is up to 10mm for thermoplastic conveyor belt.
Features and Benefits the finger size change easily by changing different dies.
• Easy operation, after clamp belt, machine runs automatically
• High precision .the finger after punching is cleaner.
• Safety, reduce manual work to avoid accident because of wrongly operation.
Accessories and options •Machine with two standard dies as size 10*80mm and 20*80mm
|
TC1000 |
TC1600 |
TC2000 |
TC3000 |
Max. belt width |
1000mm |
1600mm |
2000mm |
3000mm |
Voltage (v) |
220V |
220V |
220V |
220V |
Power(W) |
750W |
750W |
750W |
750W |
Machine size |
1730*670*800 |
2335*670*800 |
|
|
Machine Weight |
|
|
|
|
Packing size(mm) |
1900*700*930 |
2450*600*1100 |
2840*670*1180 |
3870*670*1040 |
Packing weight |
320kg |
462kg |
680kg |
1048kg |
Back to main menu...
-

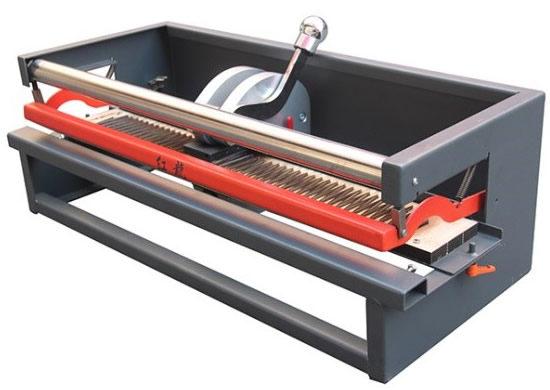

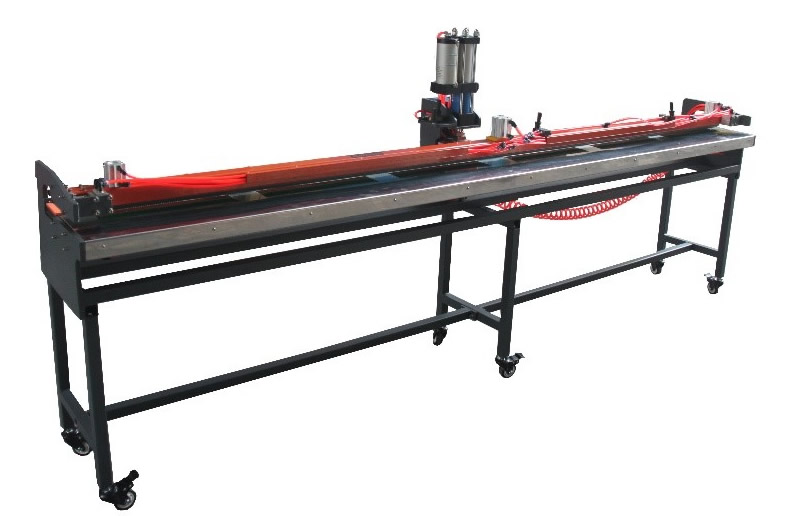

HOLO TB PENUMATIC PUNCHING MACHINE
HOLO TB Penumatic finger punching machine is a economic semi-auto finger punching machine using for preparation of Simple finger, finger over finger punching or triple punching.
The punching machine incorporates hydraulic pressure system
and is composed by the frame, the blade/knife, removable head and clamping bar.
Head operated by hydraulic cylinder.
Available for standard size 1000mm 1600mm 2100mm and 3200m .
Standard punching blade size 10*80mm for single finger and 20*50mm for finger over finger.
Features and Benefits
Removable head for easy handling.
Semi-automatic for a comfortable use in the workshop.
Open-ended for wider belts.
Parameters |
TB1100 |
TB1600 |
TB2100 |
TB2500 |
Length (mm) |
1150 |
1700 |
2280 |
2680 |
Width (mm) |
510 |
510 |
510 |
650 |
Height (mm) |
1550 |
1550 |
1550 |
1700 |
Height without feet (mm) |
850 |
850 |
850 |
245 |
Package Weight (kg) |
90 |
170 |
250 |
300 |
Wooden box volume
(L*W*H) (mm) |
1300*650*950 |
1800*650*950 |
2360*650*950 |
2750*670*960 |
Back to main menu...
-

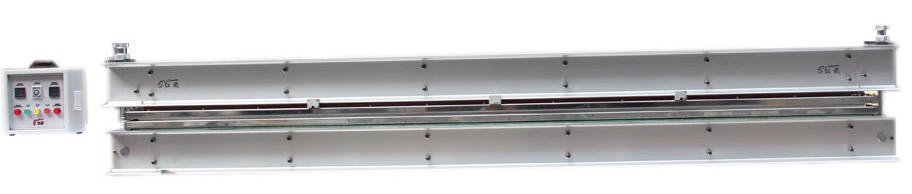

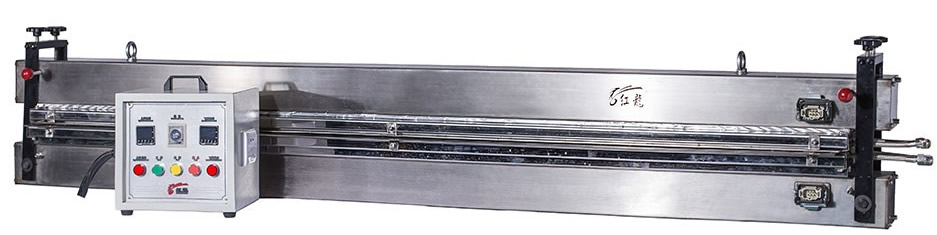

HOLO PB Water Cooled Press Machine
Stainlessl Steel
Aluminum alloy
HOLO water cooled press machine/vulcanize is a conveyor belt joint machine for splicing pvc pu pvk conveyor belt .
- The press is divided into 2 parts (top and bottom).
- Each aluminum platens with heating elements, cooling pipes and temperature probes.
- Automatic control of the whole splicing process.
Product Description
- Available for several belt widths: from 600mm up to 5000mm.
- From 600mm-2100mm made by stainless steel,Up to 2100mm made by Aluminium.
- Up and Bottom heating platen can set to different temperature.
- Length of heating platen: 150mm or 200mm
Parameter |
1100 |
1300 |
1600 |
2100 |
3200 |
4200 |
Effective length |
1000mm |
1200mm |
1500mm |
2000mm |
3000mm |
4000mm |
Effective width |
150mm (200) |
150mm (200 |
150mm (200 |
150mm (200 |
150mm (200 |
150mm (200 |
Weight lower part |
41 kg |
49 kg |
63 kg |
102 kg |
208 kg |
210 kg |
Weight upper part |
35 kg |
42 kg |
57 kg |
94 kg |
160 kg |
208 kg |
Total weight |
87 kg |
91 kg |
125 kg |
196 kg |
340 kg |
430 kg |
Total Length |
1410mm |
1560mm |
1910mm |
2420mm |
3550mm |
4555mm |
Total width |
310mm |
320mm |
390mm |
390mm |
550mm |
650mm |
Max. pressure |
2 Bar |
2 Bar |
2 Bar |
2 Bar |
2 Bar |
2 Bar |
Max. temperature |
200 C |
200 C |
200 C |
200 C |
200 C |
200 C |
Dimension for transport |
2050 x 480 x 540mm |
2300 x 480 x 540mm |
2450 x 550 x 490mm |
2950 x 600 x 490mm |
3730 x 830 x 300mm |
4730 x 830 x 300mm |
Weight for transport |
133 kg |
150 kg |
170 kg |
250 kg |
400 kg |
500 kg |
Power (W) |
3300 |
3600 |
4800 |
6300 |
9000 |
12000 |
Back to main menu...
-

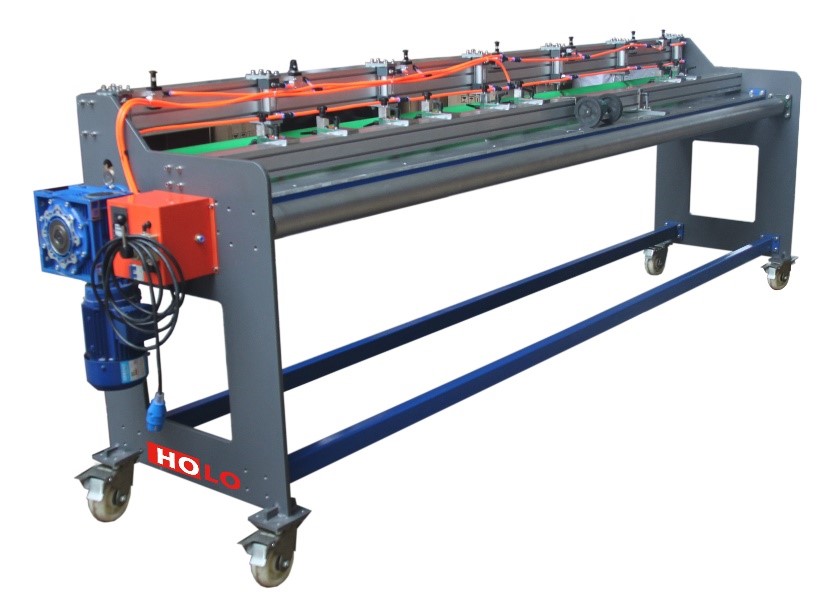

HOLO CA Cutting/ Slitting Machine
HOLO CA Cutting machine is using for slit wide belt into narrow width.
- Economic design without winder and reminder units.
- Standard size 2M 3M(3M machine with hydromantic pressure device to help fix belt)
Product Description•
Electrical & Pneumatic control panel including the speed control, roller adjustment.
- The complete assembly, when you get the machine, can use immediately
